KHHD015A0F

通信标准模块 >1/16砖

其他系列不限

主要技术特点：

Compliant to RoHS II EU	No minimum load
Ultra-wide Input Voltage Range, 18Vdc to 75Vdc	High efficiency – 90.5% at full load (VIN=48Vdc)
Surface mount (SMT) or Through hole (TH) Over-temperature protection	Low output ripple and noise Positive Remote On/Off logic
Reflow process compliant, both SMT and TH versions Wide operating temperature range (-40°C to 85°C)	Output overcurrent/voltage protection Output Voltage adjust: 80% to 110% of Vo,nom

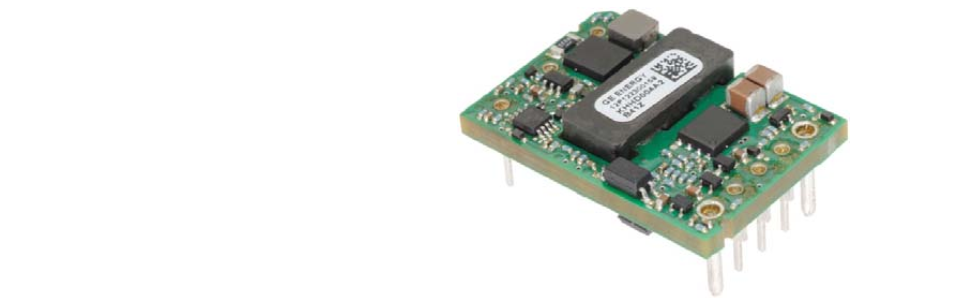

KHHD015A0F系列是隔离DOSA兼容十六分之一砖直流-直流转换器。宽输入电压范围18 -75 Vdc,并提供一个精确可调节输出电压3.3Vdc。输入和输出是完全隔离的,允许多功能极性配置和接地连接。模块具有效率高，满载效率可达90.5%

产品型号

型号	输入电压	输出电压	输出功率	输出路数	输出电流	输出尺寸
KHHD015A0F41Z	* vac 18-75 vdc	3.3V	50W	1	12(15)A	0.9"1.3"0.37" (22.9339.3)
