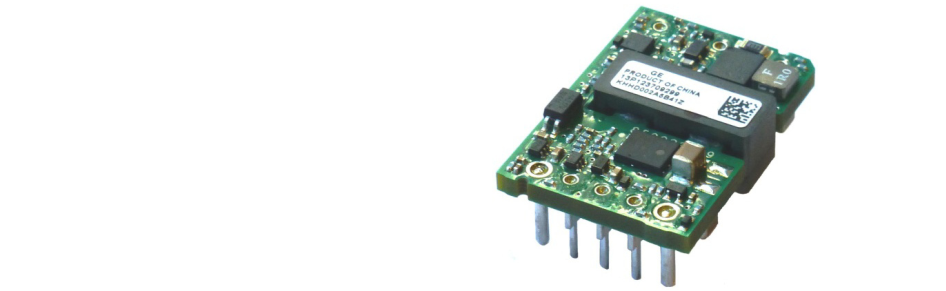

KHHD002A5B

通信标准模块 >1/16砖

其他系列不限

主要技术特点：

Compliant to REACH Directive (EC) No 1907/2006	Ultra-wide Input Voltage Range
No minimum load Constant switching frequency	High efficiency – 90% at full load (VIN=48Vdc) Positive Remote On/Off logic
Low output ripple and noise Reflow process compliant, both SMT and TH versions	Over-temperature protection Small Size and low profile, follows DOSA standard 1/16thfootprint
Output overcurrent/voltage protection Wide operating temperature range (-40°C to 85°C)	Output Voltage adjust: 80% to 110% of Vo,nom

KHHD002A5B系列是隔离DOSA兼容十六分之一砖直流-直流转换器。宽输入电压范围18 -75 Vdc,并提供一个精确可调节输出电压12Vdc。输入和输出是完全隔离的,允许多功能极性配置和接地连接。模块具有效率高，满载效率可达90%。

产品型号

型号	输入电压	输出电压	输出功率	输出路数	输出电流	输出尺寸
KHHD002A5B41Z	* vac 18-75 vdc	12V	30W	1	2.5(*)A	0.9"1.3"0.37" (22.9339.3)
