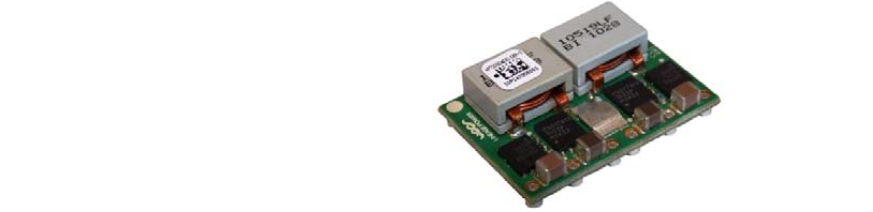

APTS050
非隔离DC/DC >模拟型降压

技术特点:

  • Compliant to RoHS EU Directive 2002/95/EC(-Z versions)
  • Compliant to RoHS EU Directive 2002/95/EC with lead solder
  • exemption (non-Z versions)
  • Input voltage from 4.5Vdc to 14Vdc
  • Output voltage programmable from 0.7 Vdc to 2.0Vdc via external resistor
  • Output current up to 50A
  • Tunable control loop for fast transient response
  • True differential remote sense
  • Negative remote On/Off logic
  • Output voltage sequencing (EZ-SEQUENCE TM)
  • Output over current protection (non-latching)



  • Over temperature protection
  • Monotonic startup under pre-bias conditions
  • Parallel operation with active current sharing
  • Small size and low profile:
  • 33 mm x 22.9 mm x 10 mm (max.)
  • (1.3 in x 0.9 in x 0.393 in (max.))
  • Wide operating temperature range [-40°C to 105°C(Ruggedized: -D), 85°C(Regular)]
  • UL* 60950-1 Recognized, CSA C22.2 No. 60950-1-07 Certified, and VDE? (EN60950-1) Licensed
  • ISO** 9001 and ISO 14001 certified manufacturing facilities

GigaTLynxTM 系列是非隔离式DC/DC电源转换器,最大输出电流可以达到50A。具有宽范围的电压输入(4.5Vdc-14Vdc),通过输出电阻可以精确调整的输出电压(0.7Vdc-2Vdc)。  功能包括ON/OFF开关,输出电压调整,过温和过流保护,还有输出电压并联。版本(-D)工作温度可以高达105°C,并且能够承受高程度的撞击和振动。可调的环路控制可以用最少的输出电容,将负载动态响应达到最优状态,从而降低PWB区域。

产品型号
型号输入电压输出电压输出功率输出路数输出电流输出尺寸
APTS050A0X3* vac
4.5-14 vdc
0.7-2V100W150(*)A0.9"*1.3"*0.393"
(22.86*33.02*10)
