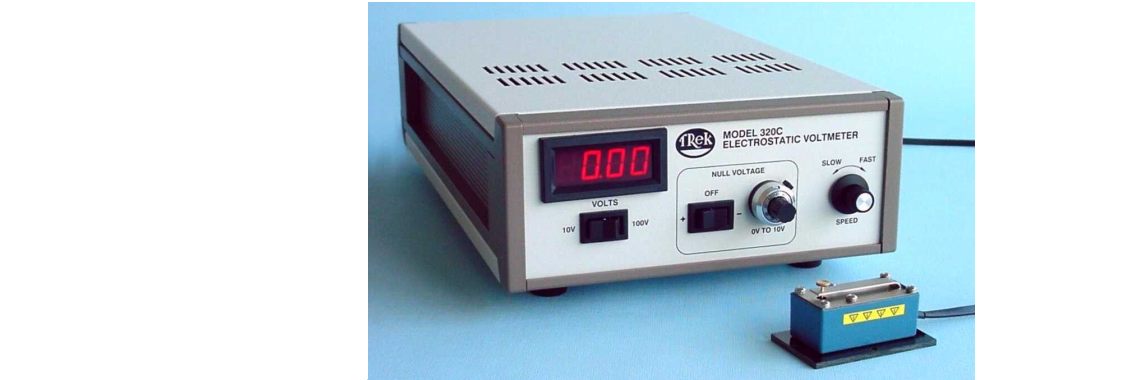

- High-Sensitivity , DC Stable Electrostatic Voltmeter
Measurement Range: 0 to ±100 V DC or Peak AC
Sensitivity: 1 mV
Speed of Response: Less than 300 ms for a 100 V step
Measurement Accuracy: Better Than 0.05% of Full Scale
Null Voltage Source: 10 Volt Nulling Supply
| - Response Speed Control: AC Response Adjusted for Speed/Noise
- Drift Spacing/Null Adjustment: Minimizes Variations in voltage values as probe to test surface spacing changes
Available Monitor Outputs: 1:1 of Voltage Monitor Output 10:1 or 20:1 (switch selectable)
CE Compliant
|
