主要技术特点:
|
|
|
|
|
|
| Variable speed “Smart Fans” |
|
|
| V-Programming from 20% to 125% |
| |

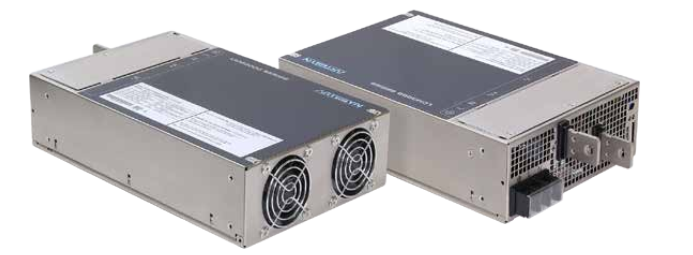

型号 | 输入电压 | 输出电压 | 输出功率 | 输出路数 | 输出电流 | 输出尺寸 |
---|---|---|---|---|---|---|
LCM3000L-T | 90-264 vac 129-370 vdc | 12V | 3000W | 1 | 250(*)A | 7"*10.9"*2.5" (177.8*276.9*61) |
LCM3000O-T | 90-264 vac 129-370 vdc | 18V | 3000W | 1 | 166.7(*)A | 7"*10.9"*2.5" (177.8*276.9*61) |
LCM3000Q-T | 90-264 vac 129-370 vdc | 24V | 3000W | 1 | 125(*)A | 7"*10.9"*2.5" (177.8*276.9*61) |
LCM3000U-T | 90-264 vac 129-370 vdc | 36V | 3000W | 1 | 83.3(*)A | 7"*10.9"*2.5" (177.8*276.9*61) |
LCM3000W-T | 90-264 vac 129-370 vdc | 48V | 3000W | 1 | 62.5(*)A | 7"*10.9"*2.5" (177.8*276.9*61) |
LCM30007-T | 90-264 vac 129-370 vdc | 72V | 3000W | 1 | 41.7(*)A | 7"*10.9"*2.5" (177.8*276.9*61) |
